One panel. The whole AHU under control.

Automation, switching and protection of the AHU in a compact panel, designed and built by Storge with the STG AHU controller and a touchscreen HMI.

  • Main AHU, fan coil and fan coil unit manufacturers
  • Chilled water, VRF and VRV
Request a quote See technical data

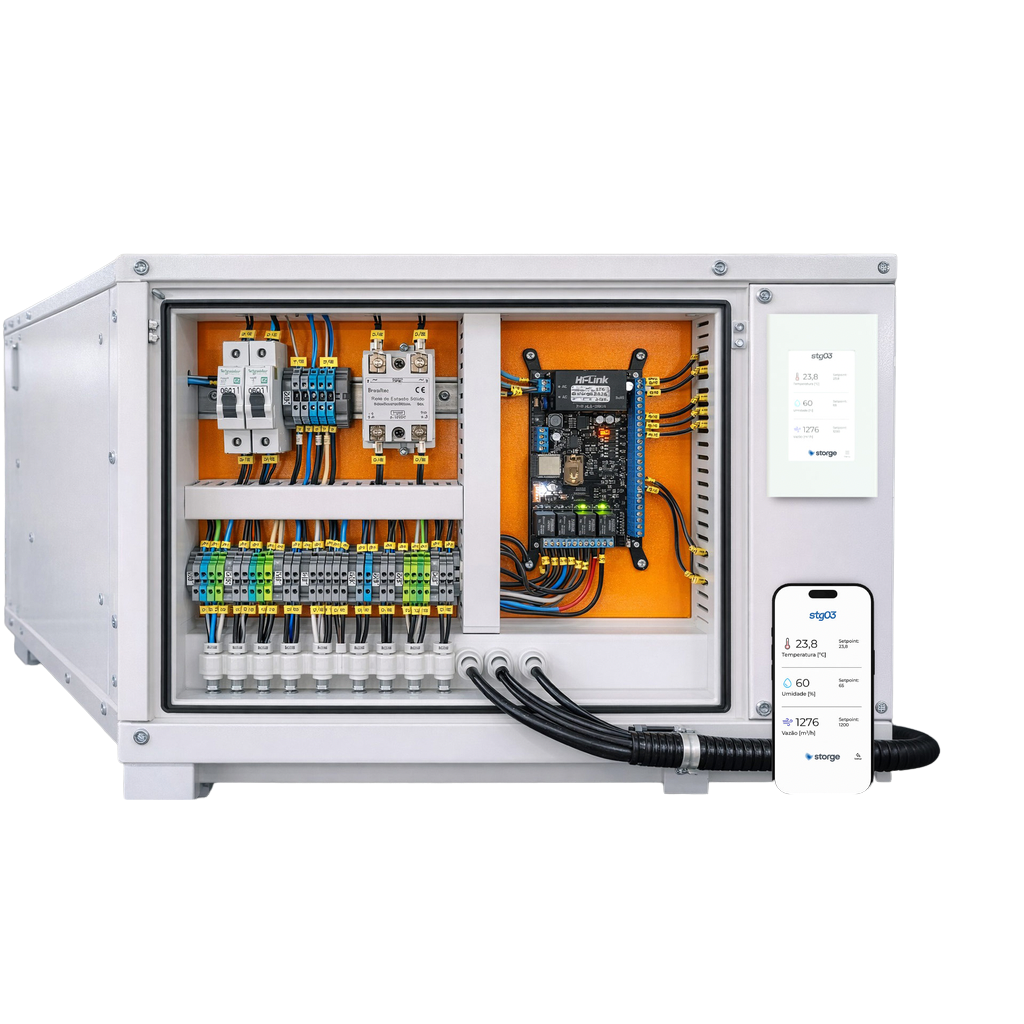

Open AHU automation panel, with STG AHU controller, switching and protection, and the HMI beside it
MeasuresT · RH · ΔP · Airflowtemperature, humidity, pressure and airflow
Interface4.3" touch HMIsensors built into the panel
CommunicationWired or wirelessHMI and machine hardware · RS-485 Modbus for the BMS
CompatibilityChilled water · VRF · VRVAHUs, fan coils and fan coil units from the main manufacturers
What it does

Total control of the machine, no generic PLC.

Complete automation panel, designed and built to measure for the contracted configuration. Switching, protection and automation already sized for the system.

Total controlAC or EC fans, proportional or on/off expansion valves, heating coils, dampers and UV light. Faults, alerts and filter saturation monitored.
Fits the main AHUsOperates with air handling machines from the main manufacturers. Suited to hospitals, pharmaceuticals, laboratories and industrial processes.
Built-in sensorsTemperature, humidity and pressure transducer already in the panel. In the room, the module with display reads temperature, humidity and CO₂ and receives the setpoint.
Inside the panel

From the HMI to the panel, from the panel to the AHU

The touchscreen HMI sits in the conditioned room: it shows temperature, humidity and airflow and receives the setpoint. It talks to the panel over Modbus, wired, or over the STG wireless network. In the panel, the STG AHU controller commands the AHU peripherals.

stg03 HMI of the panel, with display
4.3" touchscreen HMIT · RH · airflow · setpoint, in the room
Modbus (wired) or STG wireless network
Complete panel for AHUs
Complete panelSTG AHU controller, switching and protection
commands
AHU peripherals
FanValvesHeatingDampersHumidificationUV light
Where it acts

Four control points on the same AHU

All solved in the control layer, without replacing the machine.

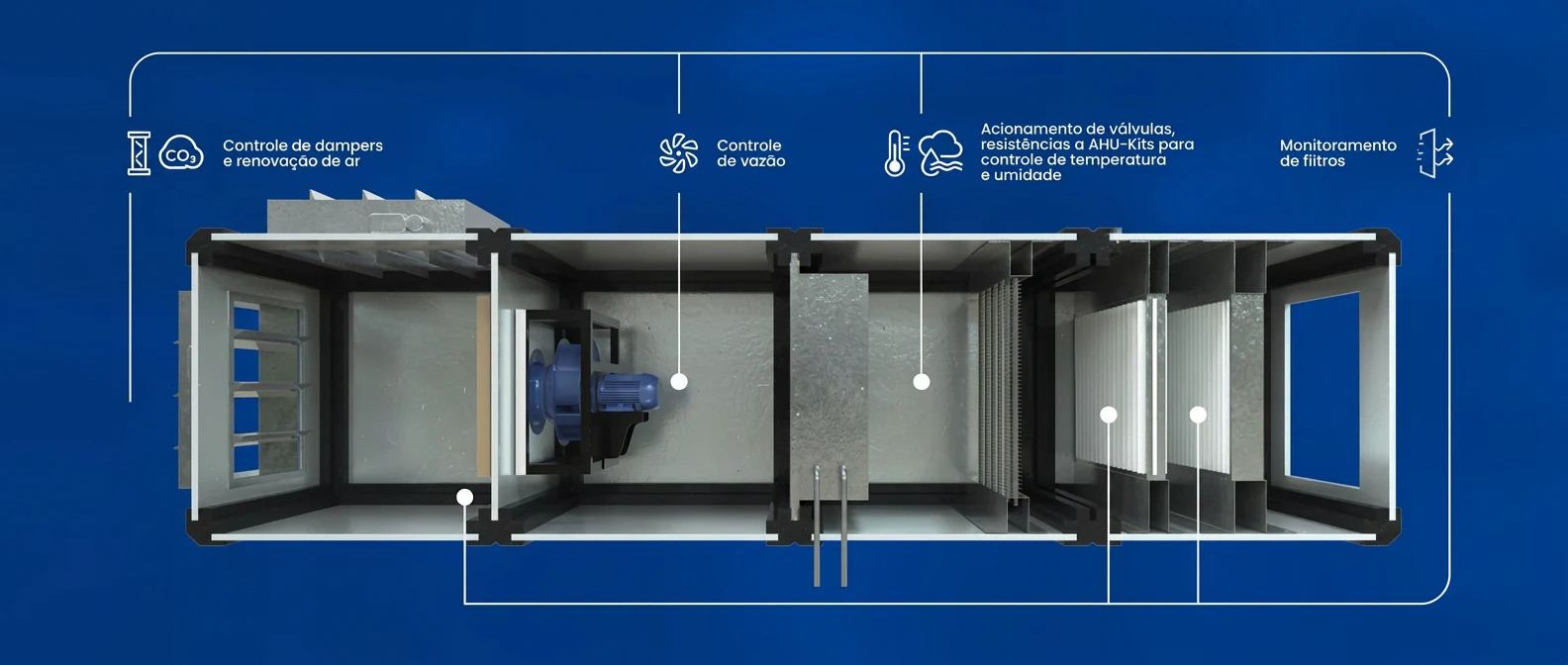

Air handling unit diagram with the automation points: dampers and fresh air, airflow control, valves and heaters, filter monitoring
  1. 01Dampers and fresh airDampers driven by the room sensor's CO₂ reading: demand-controlled fresh air.
  2. 02Airflow controlAC or EC fans with airflow control by the controller itself.
  3. 03Temperature and humidityValve and heater switching, including in AHU kits, with ready-made humidity control logic.
  4. 04Filter monitoringFilter saturation monitored by a differential pressure transducer, with alert.
Main features

Everything the panel delivers, from the factory

  • Compatible with chilled water, VRF and VRV
  • Airflow, cooling, valve, heating, damper and UV light control
  • Temperature and humidity sensors and pressure transducer
  • Ready-made humidity control logic
  • Fail-safe protection
  • Configurable alarms and alerts
  • Wireless communication between HMI, sensors and the electrical panel
  • Replaces expensive panels while keeping the machine
  • Compact panel with high-level automation
  • Web interface, 4.3" touchscreen HMI and Modbus RS-485

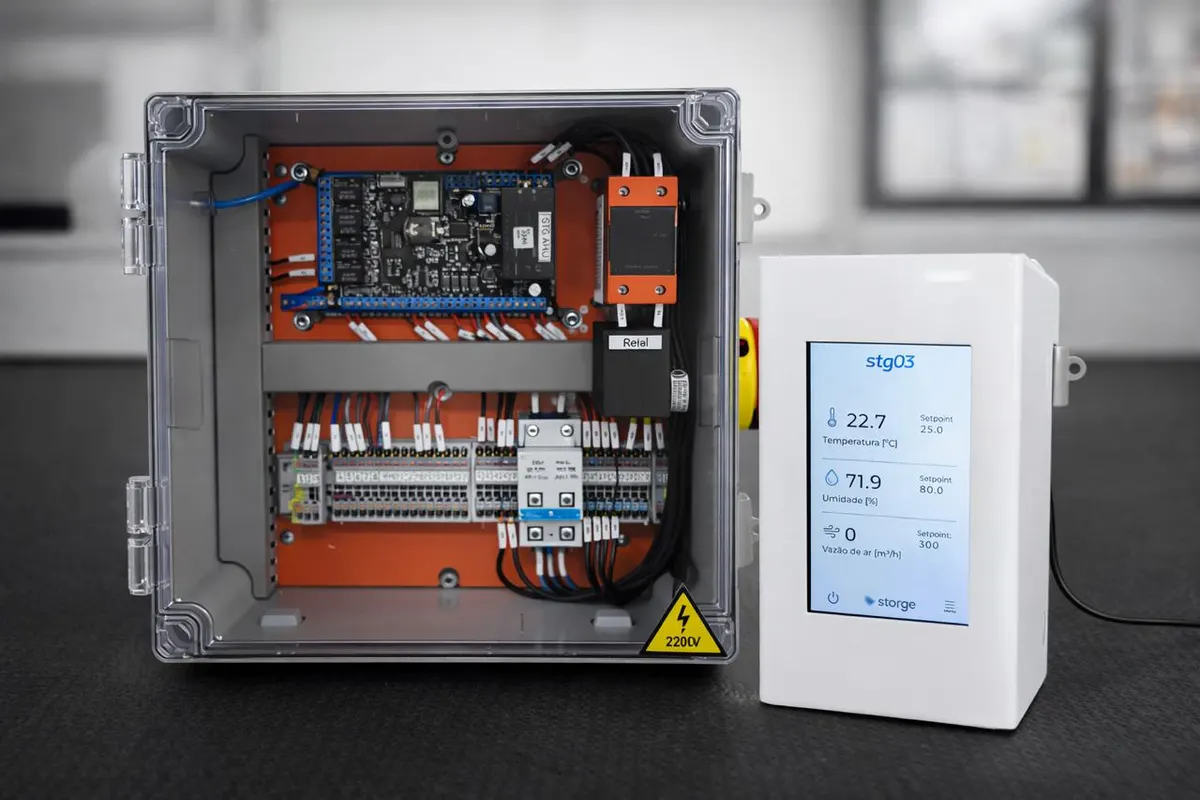

Open automation panel with STG AHU controller and 4.3-inch stg03 HMI

Prefer to integrate only the automation into your panel? See the STG AHU set →

Operation

Local operation, remote monitoring.

4.3" touchscreen HMI on the panel for local operation, web interface for remote monitoring and Modbus RS-485 for the BMS.

STG line web interface on a computerSTG line web interface on a phone
Illustrative STG line interface
Technical data

What the panel delivers.

Request the datasheet →STG AHU manual ↗
Control
Fans
AC or EC, relay and 0–10 V output
Valves
proportional or on/off
Heating
coils and heaters, 0–10 V or PWM
Dampers
0–10 V, demand-controlled fresh air
UV light
relay switching
Monitoring
Filters
up to 3 pressure switches, one per stage
Safety
safety thermostat
Faults
alarms and alerts
Sensors
In the panel
temperature, humidity and differential pressure transducer
Airflow
calculated from pressure and K-factor
In the room
room module with display: temperature, humidity, CO₂ and setpoint
Interfaces
HMI
4.3" touchscreen on the panel
Web
remote monitoring
Modbus
RS-485 for supervision (BMS)
Compatibility
Systems
chilled water, VRF and VRV
Machines
AHU, fan coil and fan coil unit
Manufacturers
main manufacturers in Brazil
Manufacturing
Origin
Storge · Piraquara, Brazil
Design
own hardware, firmware and panel
Format
complete panel or STG AHU set

Controller terminals, inputs and outputs: see the STG AHU page.

Where to use

Main applications.

Air handling unit in cross-section
AHUs

Ventilation, cooling, heating and humidity in a single automation, built into the panel.

See application →
Complete panel with stg03 HMI
AHU retrofit

Replacing the existing panel while keeping the machine. Hospitals, pharmaceuticals, laboratories and industry.

See application →
